Advanced Automatic Radio Shuttle Pallet Racking System for High-Density Storage

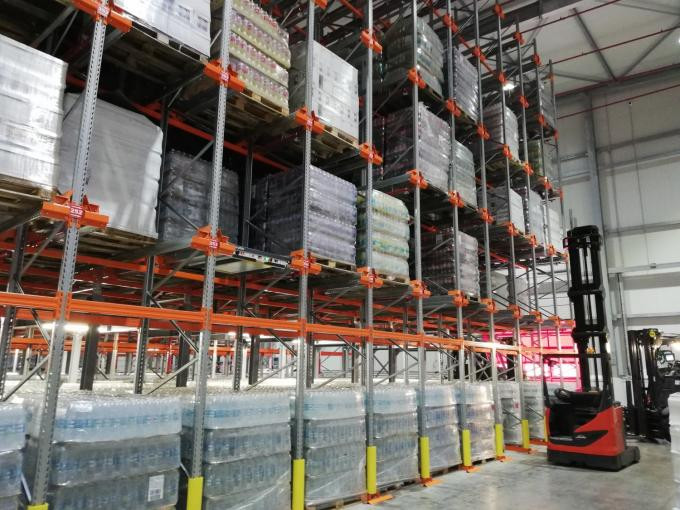

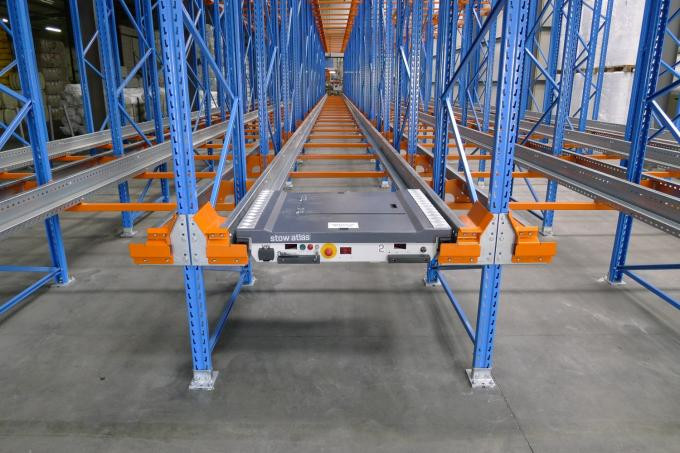

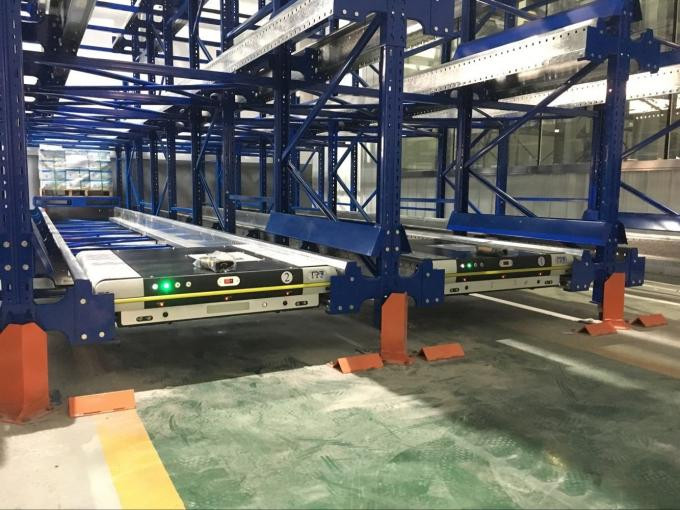

The radio shuttle pallet racking system is a semi-automatic storage system. It is equipped with shuttle trucks that can be controlled by an operator with a controller. The forklift is in charge of loading and unloading pallet cargoes on the shuttle. And the shuttle is able to transport pallets to any position in each lane. The storage density and efficiency are high in the system and it is favorable for storing large volumes of products with high throughput.
| Name | Pallet racking | Material | High Strength Steel |
| Beam levels | 2~15 tiers per bay rack | Color | (RAL Code) Green, Orange, Blue, Yellow, Etc. |
| Upright Frame Height | 2500mm~15000mm | Weight Capacity | 500~3000kg per level |
| Beam Width | 1000mm~3900mm | Frame Depth | 700mm~1500mm |
| Finish | Epoxy Powder Coated for corrosion prevention | ||
| Usage | Cargos Storage | ||
| Package | Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc. | ||
| Accessories | Bolts and nuts, Upright protectors, decks, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery time | 7~25 days as per order quantity | ||
| Assemble & installation | Detailed assembly instructions are available as well as dispatching installation engineer for project installing at site. | ||
