• Description

Product Description

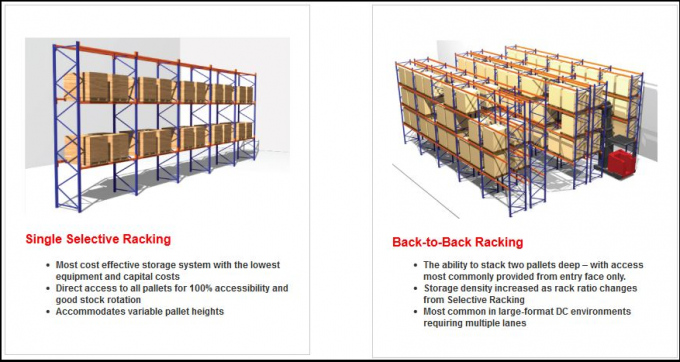

In modern warehouses and distribution centers, storage capacity and efficiency are the most important factors in maximizing a facility. The desired types of steel storage pallet rack include selective, push back, drive in, drive through, pallet flow, cantilever, work platforms and any other related systems. In this article, I will brief you a very classical pallet rack with denser storage pattern—Very Narrow Aisle pallet racking system.

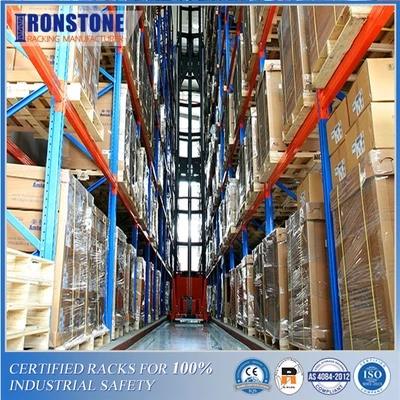

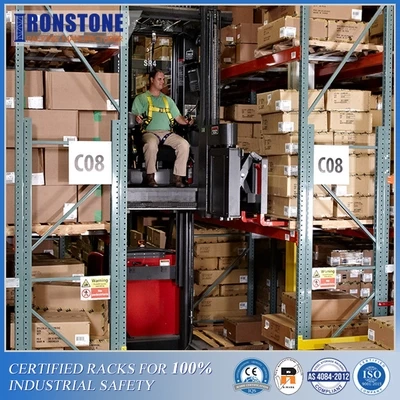

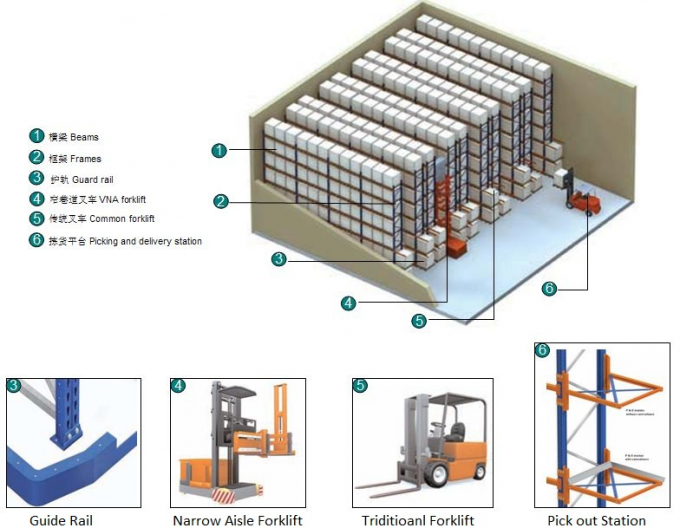

Very narrow aisle pallet racking system, known as VNA, is a tighter variation of conventional selective pallet rack configured with narrower aisles and high-rise storage racks, which provides maximum space utilization within a storage facility. Perfectly suited to products of multiple SKUs, VNA follows a First-in/First-out stock rotation principle.

Details of Warehouse Rack

Name Warehouse rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy powder coated for corrosion prevention
Usage Cargos storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available
